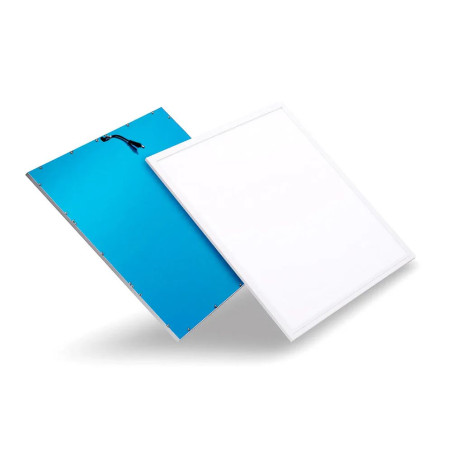

LED Panel - Extra-slim, 40W, 60x60 cm white frame
40W
3800 lumen
120
85 - 265V
PN60X60B40F
€22.22 TTC
Extra-slim 40W, 60 x 60 cm, LED ceiling panel, available in white light and natural white light, with 3800 lumens.
Extra-slim LED panel with 3 mounting options: surface-mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.
Features:
-White panel and white frame model.
-Driver included.
Accessories:
-White panel and white frame model.
-Driver included.
Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.
Accessories:
The default option for this panel is the simplest- mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.
a) installation kit for suspended LED panel:
a) installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.
b) installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
Delivery within 24-48h. For further information, please check our Delivery Policy.
Satisfaction guaranteed or your money back, please check our Returns Policy.
PN60X60B40F
Download product information
Data sheet
- Size
- 595 X 595 X 9 mm
- Cut
- 575 x 575 mm
- Power
- 40W
- Lumen
- 3800
- Color temperature
- Cool white 6000K - Natural white 4500K
- Beam angle
- 120
- Indoor / outdoor
- Interior
- Led type and quantity
- SMD 4014 160 leds
- Diffuser
- Milky
- Power factor
- 0.95
- VIN
- 85 - 265V
- Frequency (HZ)
- 50/60 hz
- Material
- aluminum and polycarbonate
- IP grade
- IP20
- Duration
- 30,000 hours
- Working temperature
- -20º / +40º
- Certifications
- CE, RoHS
- Warranty
- 3 years
