LED Panel - backlit, 40W, 30 x 120 cm white frame
40W
3800 lumen
120
185-265V
PR30X120B40F
€17.18 TTC

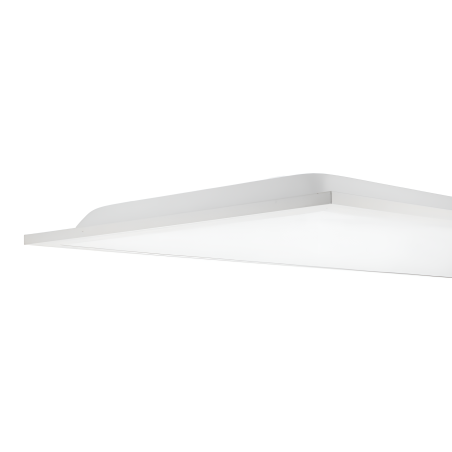

Backlit 40W, 30 x 120 cm, LED ceiling panel.
LED panel with 3 mounting options: surface mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.
Features:
White frame model.
Driver included.
White frame model.
Driver included.
Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.
Accessories:
The default option for this panel is the simplest - mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.
a) Installation;n installation kit for suspended LED panel:
a) Installation;n installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.
b) Installation installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
PR30X120B40F
Download product information
Data sheet
- Size
- 295 x 1195 x 35mm
- Cut
- 275 x 1175 mm
- Power
- 40W
- Lumen
- 3800
- Color temperature
- White 6000K - Warm white 4000K
- Beam angle
- 120
- VIN
- 185-265V
- Frequency (HZ)
- 50 Hz
- Material
- aluminum and polycarbonate
- Dimmable
- No
- IP grade
- IP20
- Duration
- 30,000 hours
- Working temperature
- -20º / +40º
- Certifications
- CE, RoHS
- Warranty
- 3 years
