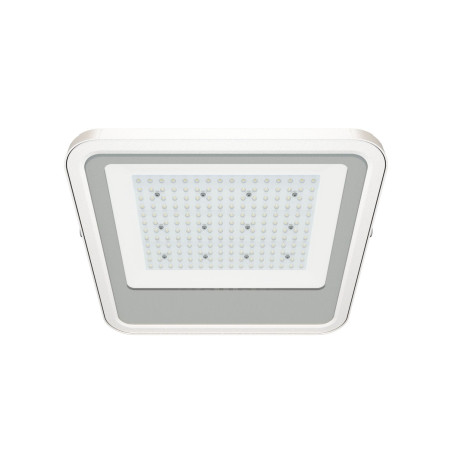

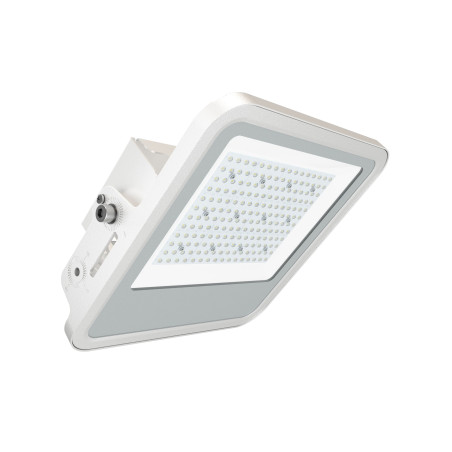

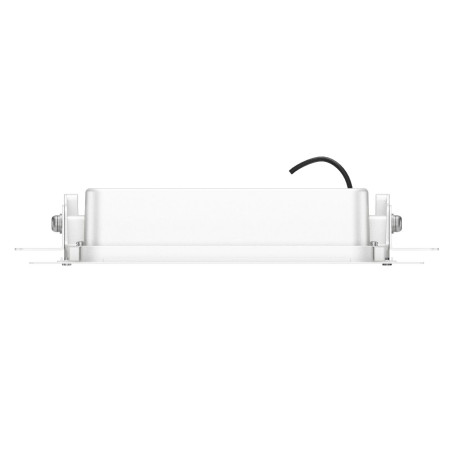

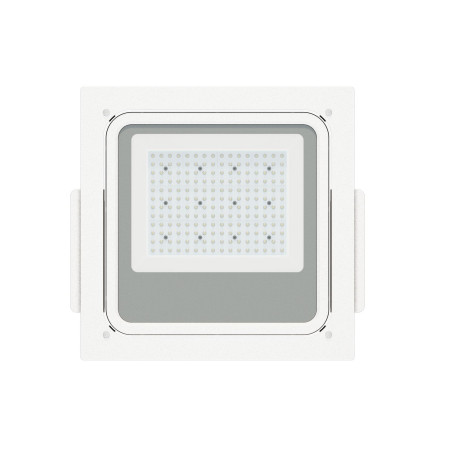

100W ATEX canopy light surface/recessed for gas stations

100W canopy-style ATEX LED luminaire, with protection against atmospheres susceptible to causing explosions.

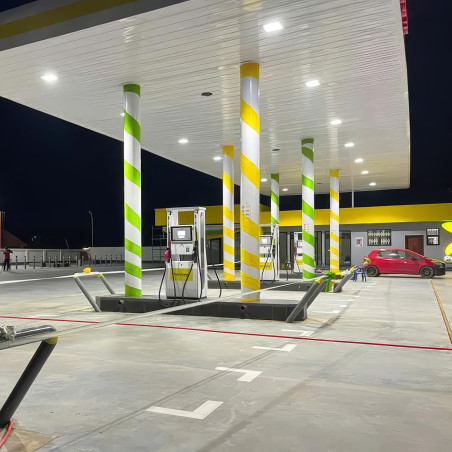

Its design is particularly suitable for petrol stations, although it can be installed in any area with potentially explosive atmospheres.

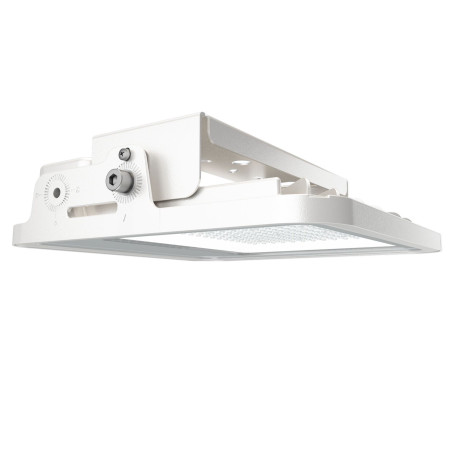

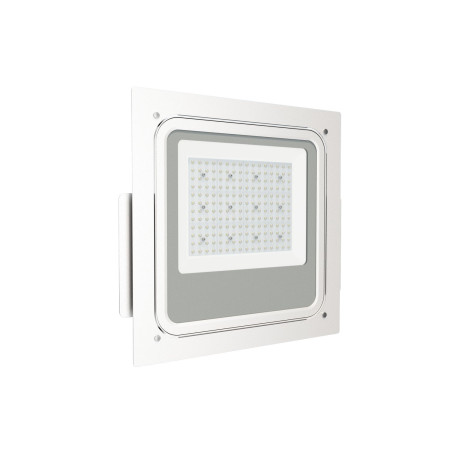

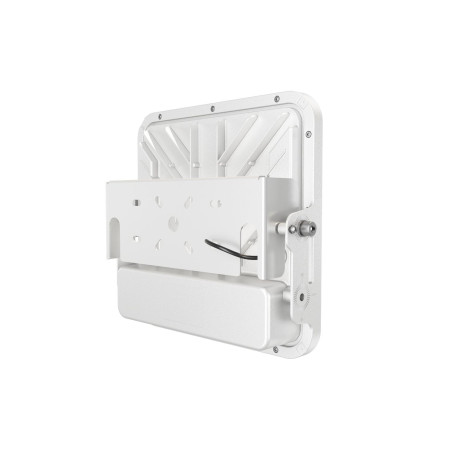

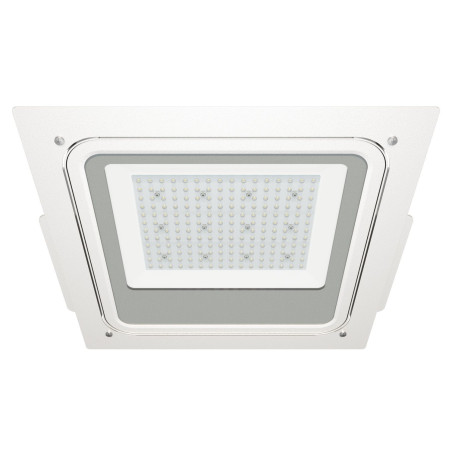

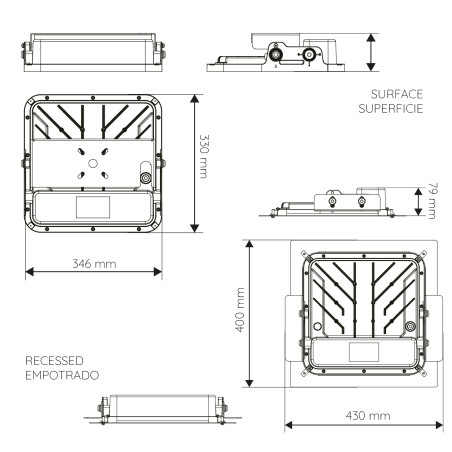

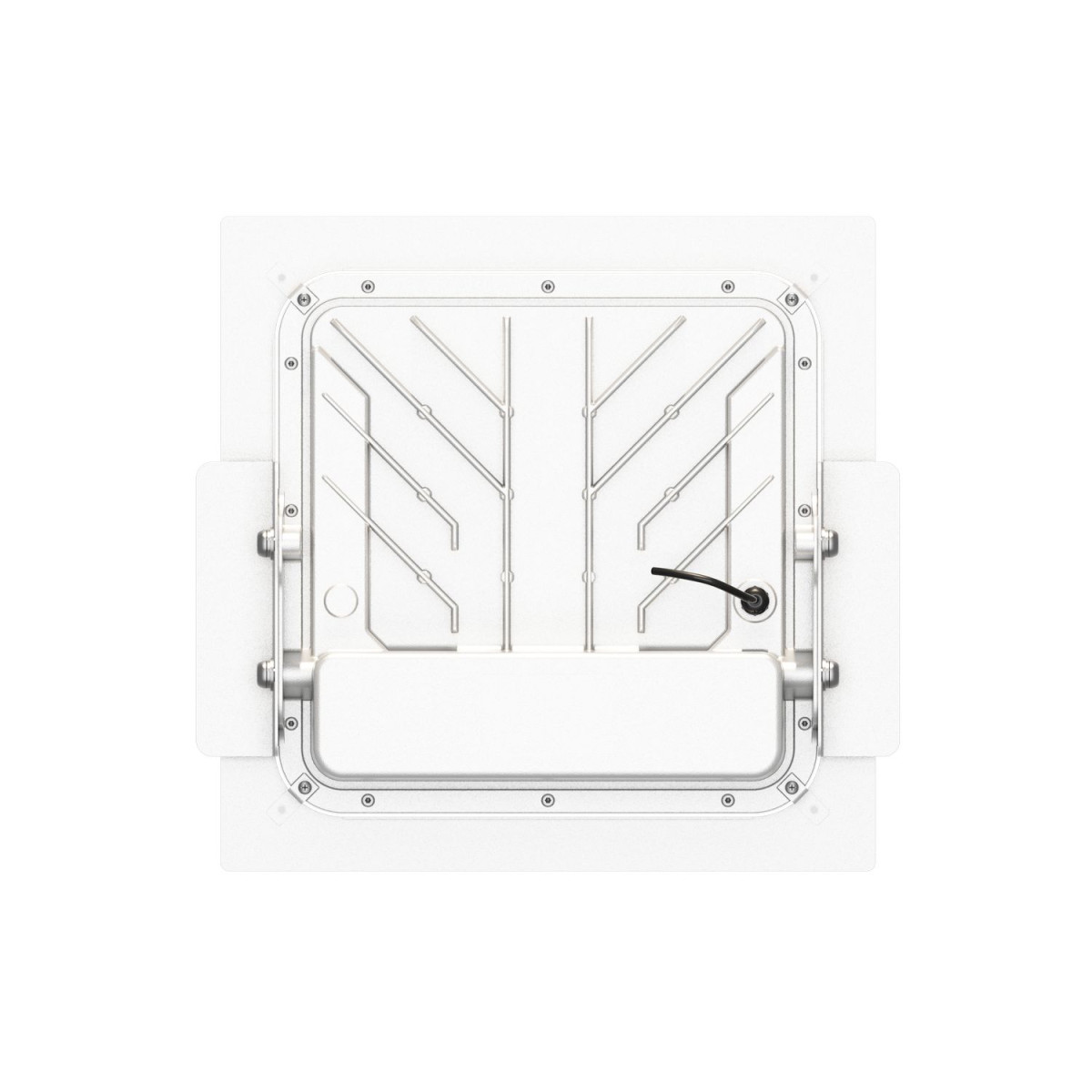

It includes a frame for recessed installation and a surface mounting bracket, allowing it to be installed on any type of ceiling.

It incorporates a driver from the prestigious Inventronics brand and PHILIPS LUMILEDS 3030 LEDs, which guarantee a long lamp life and a 5-year warranty.

Due to its 120° beam angle, it achieves a homogeneous distribution of light throughout the area to be illuminated, without shadows or glare. It is equivalent to a conventional 300W halide projector.

It has high luminous efficiency (160 lm/w), providing a luminous flux of 16,000 lumens and a power factor >0.95. The lighting it provides represents a consumption of 100kWh/1000h, which means a reduction in the amount of energy billed and in polluting gas emissions into the atmosphere compared to other low-efficiency luminaires. This product is available in white light (5700°K).

It can be installed both indoors and outdoors, as it has an IP66 protection rating (resistant to dust and water penetration). It supports an input voltage of 100-240V and an operating frequency of 50/60 Hz.

Features:

- THD <15

- Surge protection: 10KV

- Impact protection rating: IK10

- II 2G EX ib IIC T6; I 2D EX ib A21 T85°C;

- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

In addition to being a product with a service life of more than 50,000 hours, it also has CE certification, which certifies that it complies with EU requirements regarding electromagnetic compatibility and low voltage regulations. This certificate declares the product's compliance with all legal requirements and ensures that the product is valid for sale throughout the European Economic Area.

Product configurable according to technical specifications provided by the customer. For more information about customised features, please contact our customer service department.
