Industrial LED globe guard ATEX flash 15W

Industrial lamp made of aluminium and reinforced glass, for surface installation, with a high-efficiency COB LED light source and 15W.

Its mode of operation when activated is a constant amber flash light, which makes it ideal for safety and/or warning signalling in industrial and marine environments, etc.

It is protected against explosive atmospheres, certified under the strict IECEx and ATEX directives.

Its IP66 degree of protection allows it to be installed in wet areas.

The lower part consists of a round junction box with four metric M20 x 1.5 threaded conduits. One of them is fitted with a cable gland and an 80cm long electrical cable. The remaining three are closed with hexagonal plugs and ATEX M20 cable glands must be purchased if they are to be used.

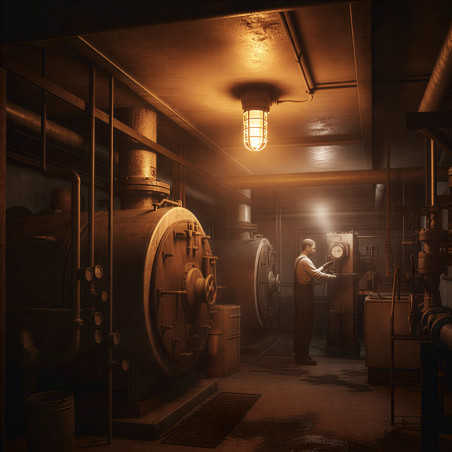

Ideal luminaire for factories, workshops, industrial warehouses, ships, paint booths, petrol stations and areas with potentially explosive atmospheres in general.

Specifications:

- Copper-free aluminium housing and tempered glass shade, with protective grille and IK08 impact protection.

- Painted by electrostatic spraying, with a high degree of corrosion protection.

- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

- Marking II 2G Ex eb mb IIC T6/T5T4 Gb

                II 2D Ex tb IIIC T80°CT95ºC/T130ºC Db IP66

- Hermetically sealed by thread (fixed with hexagonal head captive screw H2).
