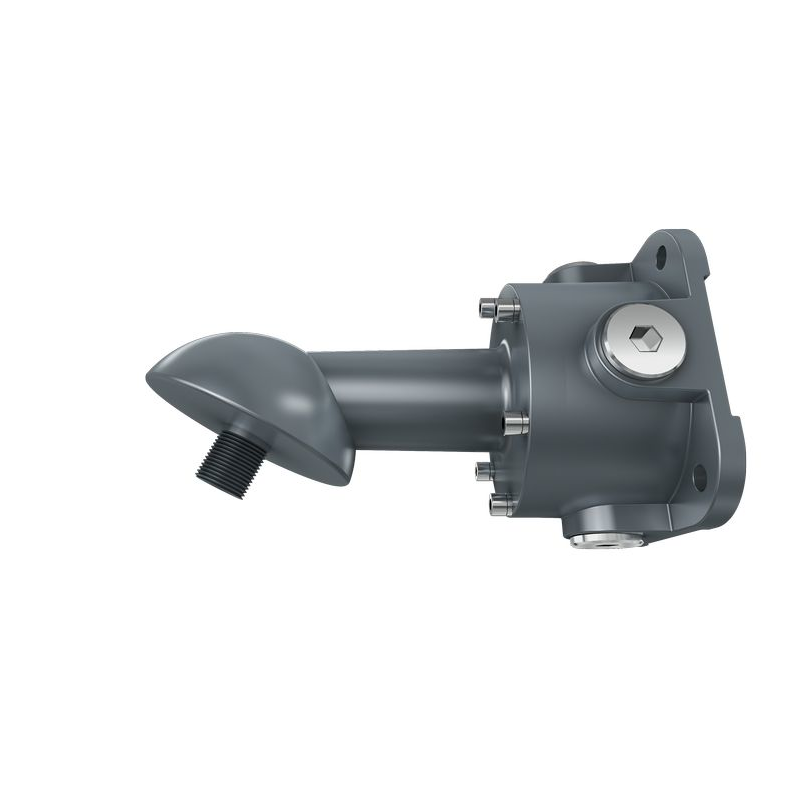

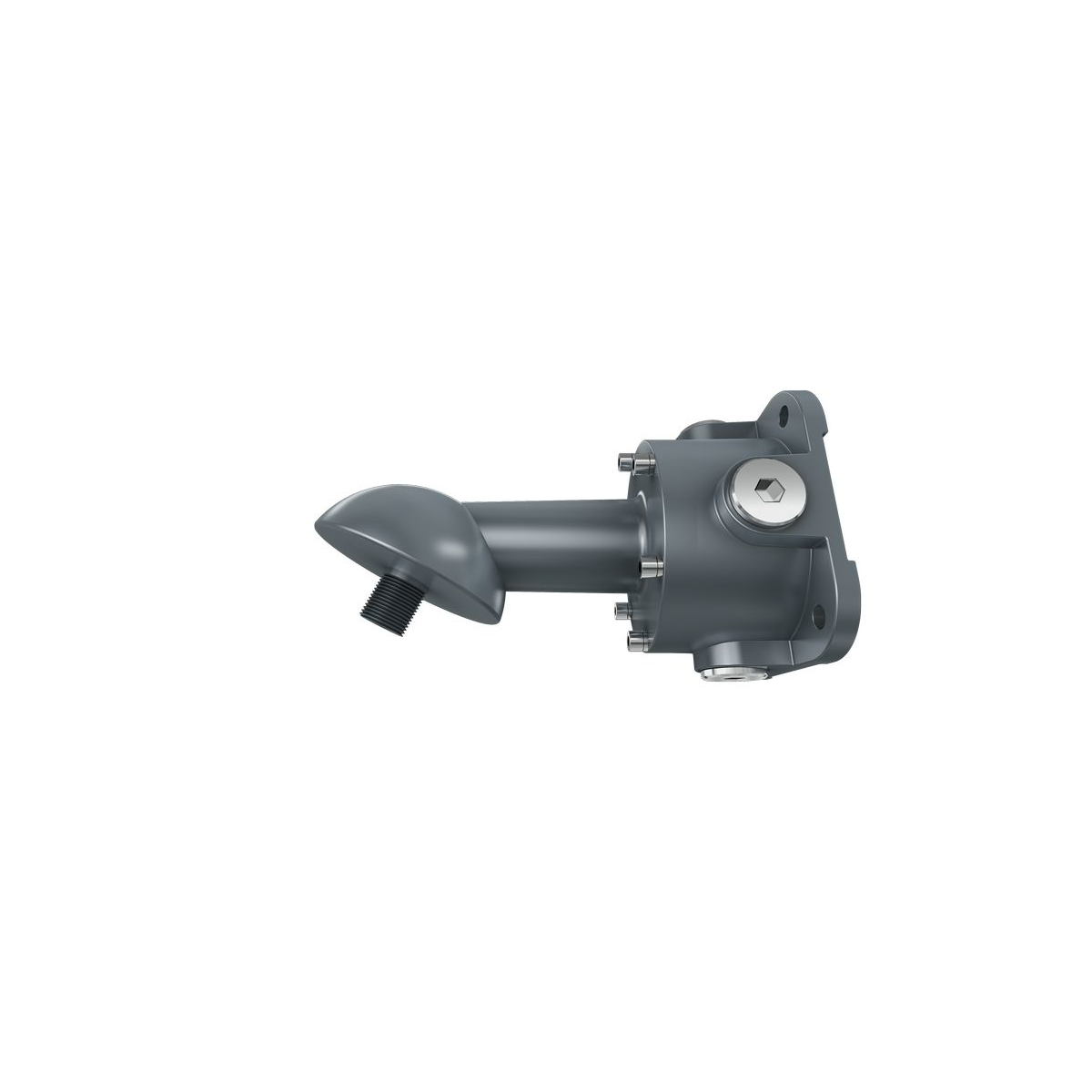

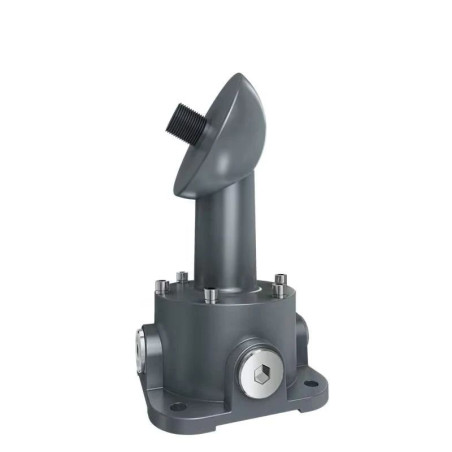

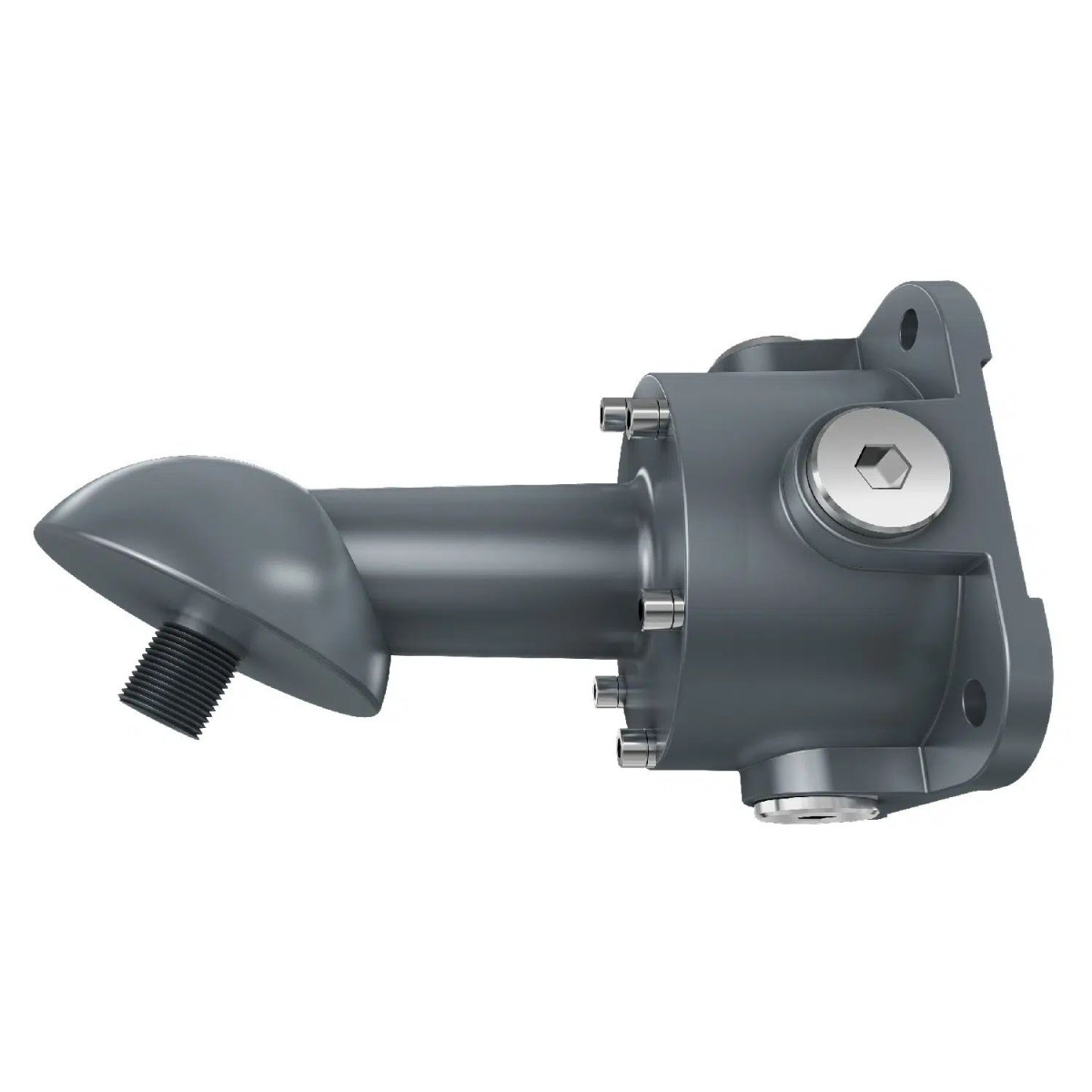

Wall bracket 120º ATEX 3/4’ NPT

Industrial bracket made of aluminium finished in grey, for surface installation of explosion-proof luminaires.

It has both ATEX and IECEX certification, making it suitable for areas with potentially explosive atmospheres.

Its IP66 degree of protection allows it to be installed in wet areas.

The lower part consists of a junction box with four 3/4’ NPT metric threaded conduits (closed with hexagonal plug). ATEX cable glands must be purchased for the ways to be used.

Ideal luminaire for factories, warehouses, workshops, industrial warehouses, ships, paint booths, petrol stations and areas with potentially explosive atmospheres in general.

Characteristics:

- Compatible with our ATEX floodlights and hoods of any power.

- Painted by electrostatic spraying, with a high degree of anti-corrosion.

- Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

- Marking II 2 GD Ex db IIB+H2 T6/T5 Gb

                Ex tb IIC T80°C/T95ºC Db

- Tamb: -60°C / +40ºC (T6/T80ºC)

- Hermetically sealed by thread (fixed with A2-70 hexagon head screws).

- Base size : 134 x 134 mm.

- Total arm length: 295 mm.

- Surface fixing screws not included.
