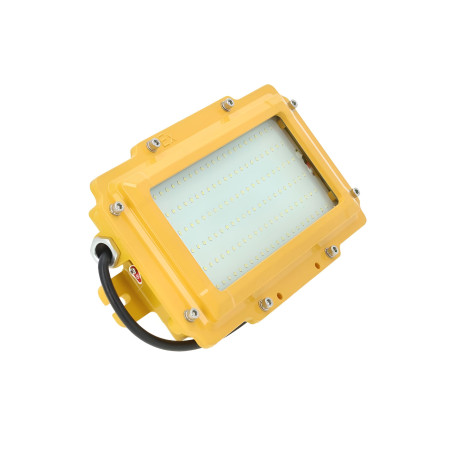

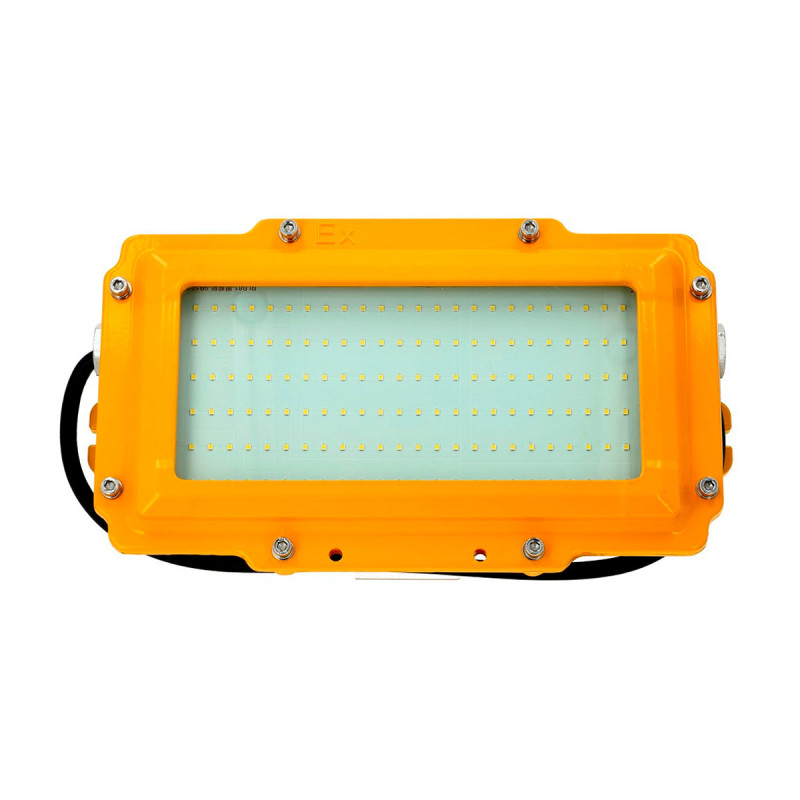

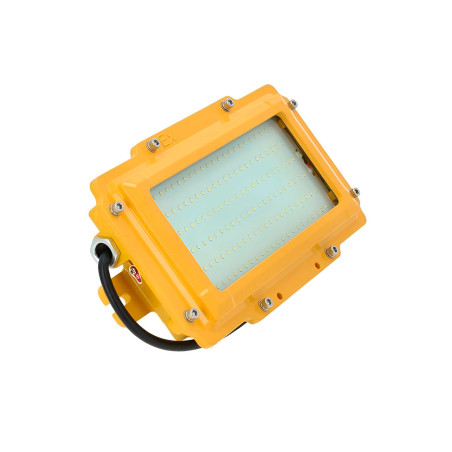

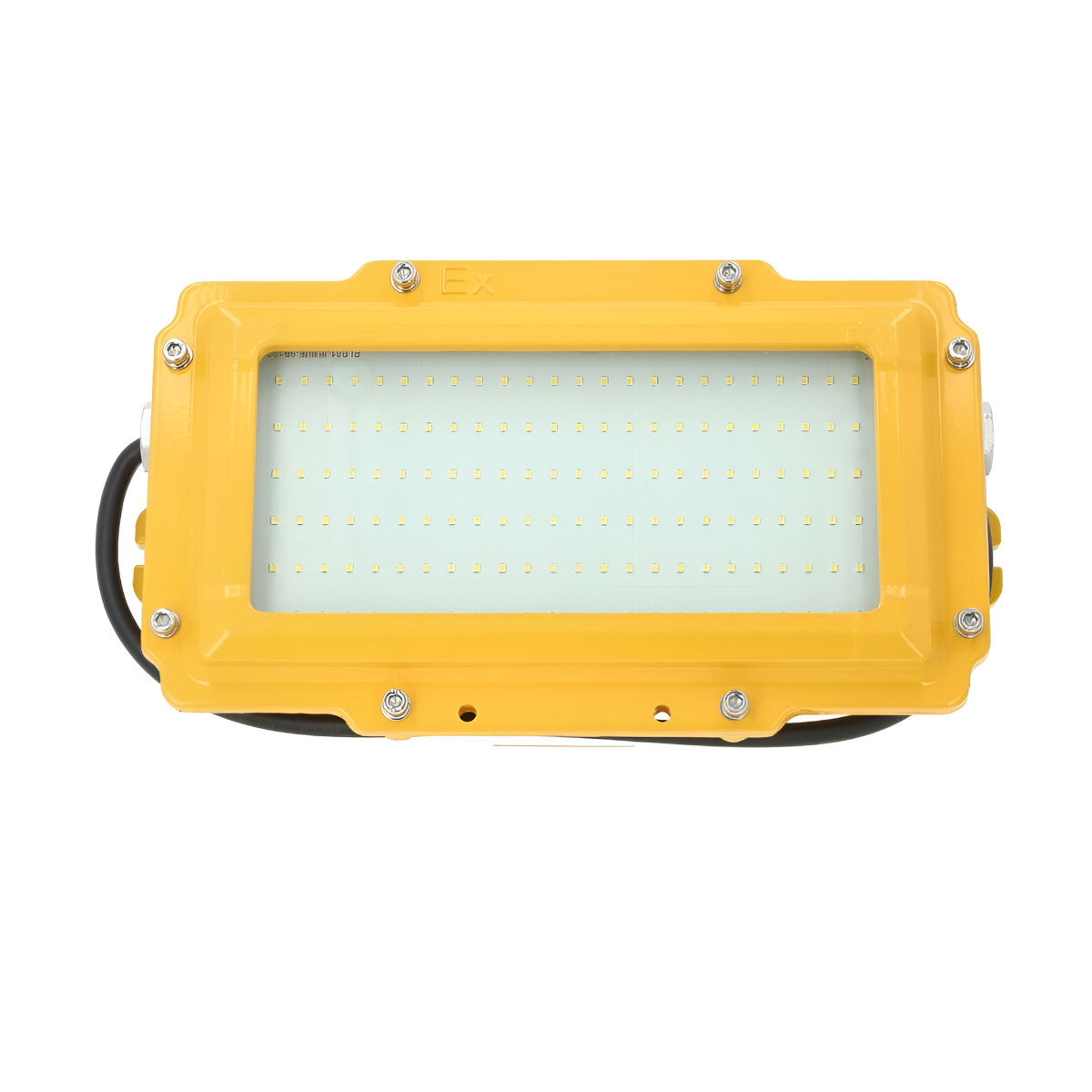

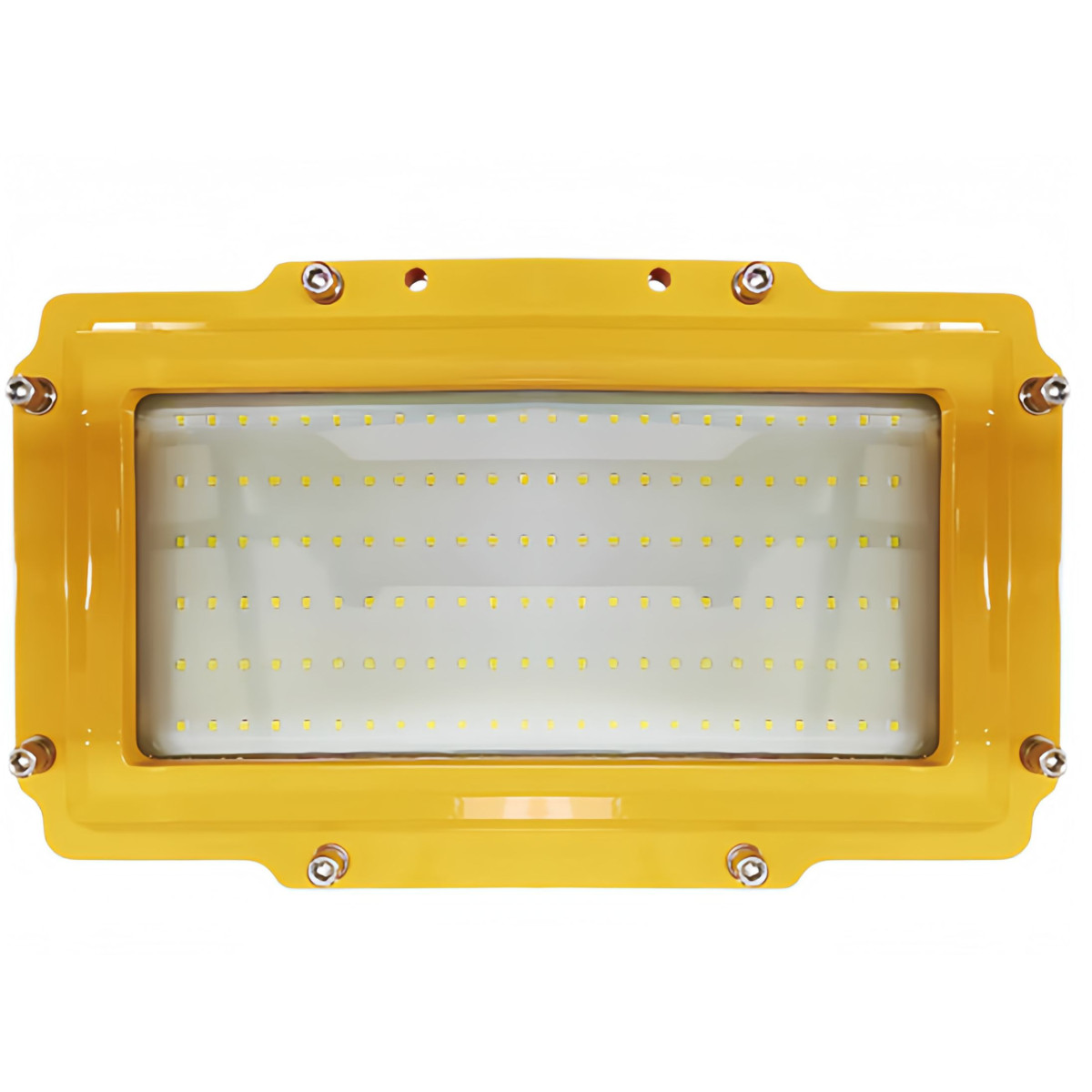

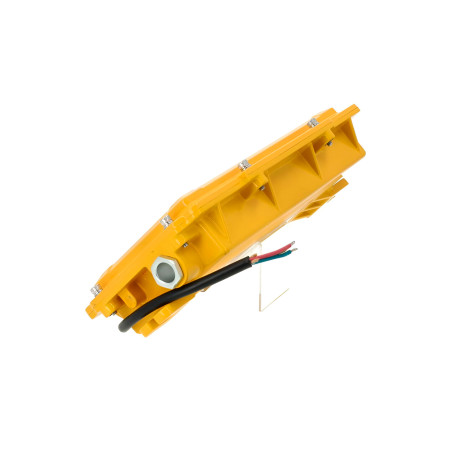

ATEX LED Floodlight 20W 120° IP65

The 20W ATEX LED Floodlight is designed to provide safe, efficient and reliable lighting in industrial environments with potentially explosive atmospheres. It complies with the ATEX Directive 2014/34/EU and RoHS regulations, making it suitable for installation in zones 1 and 2 (gases) and zones 21 and 22 (dust), ensuring safe operation in critical industrial applications.

Sealed construction

The luminaire features an aluminium body that provides mechanical strength and proper heat dissipation. It incorporates an IP65 protection rating, ensuring protection against dust and water, allowing installation both indoors and outdoors. Its dimensions are 352 × 200 × 70 mm.

Lighting and performance

With a power of 20 W and a luminous flux of 2,000 lumens, it provides suitable lighting for industrial work areas. It emits cool white light at 6000 K and features a 120° beam angle, ensuring wide and uniform light distribution. It integrates SMD LED technology and has a power factor of 0.95.

It operates with an input voltage of 220/240 V AC and a frequency of 50/60 Hz, compatible with standard electrical networks.

Installation

Designed for surface installation on both walls and ceilings. The power cable is not included and must be suitable for the installation atmosphere, with a minimum diameter of 7 mm, compatible with the luminaire cable gland.

Lifespan and warranty

The floodlight has a service life of up to 50,000 hours and is designed to operate within a temperature range of -20 °C to +40 °C. 5-year warranty.
