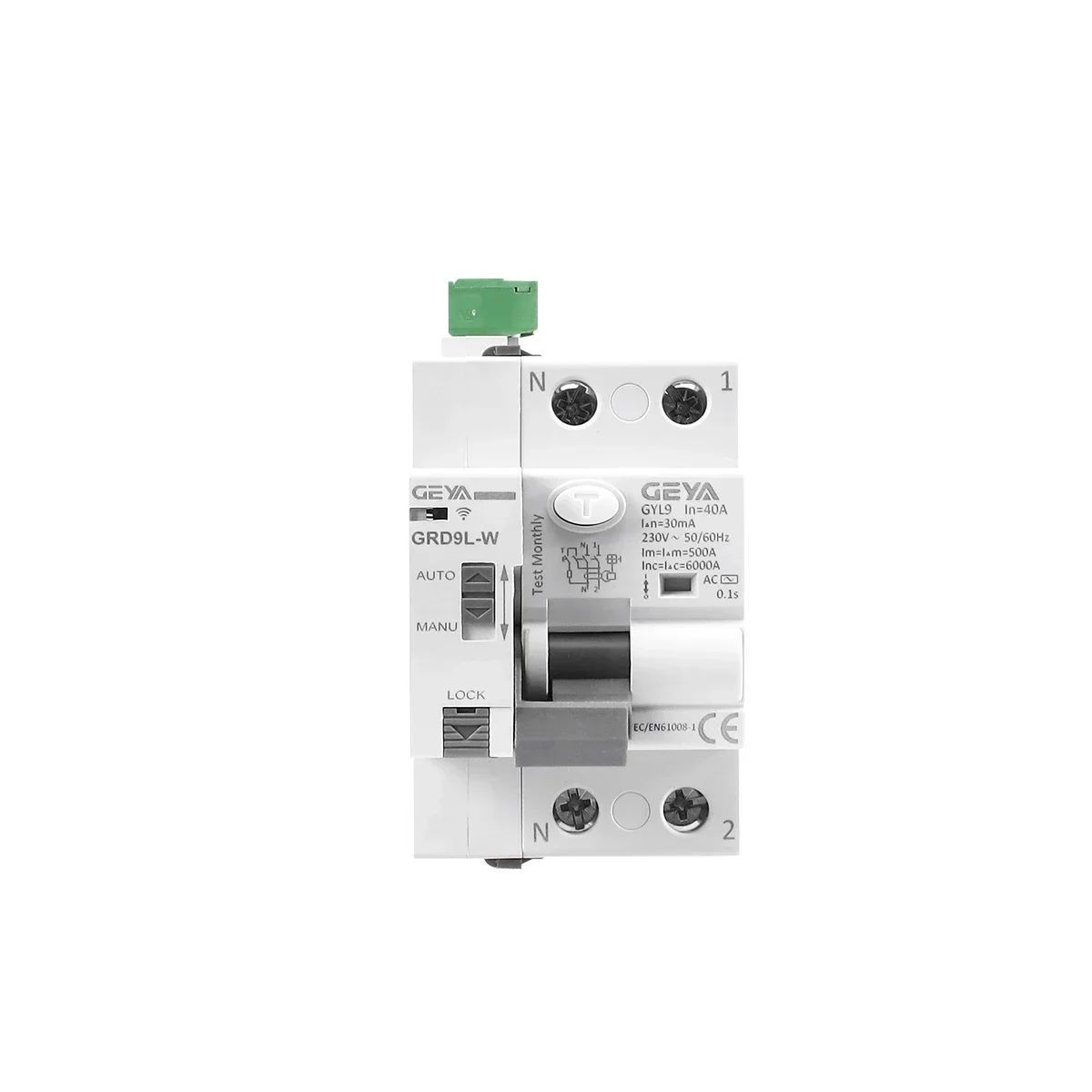

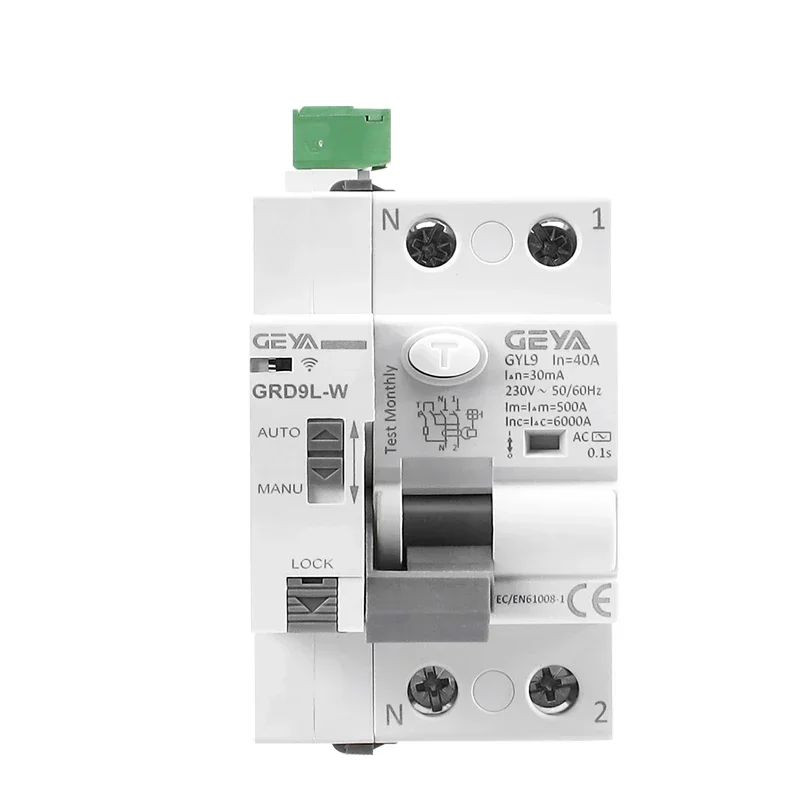

WiFi Residual Current Circuit-Breaker 2P 40A 30mA 6kA

The single-phase WiFi Reclosing RCCB is designed to effectively protect electrical installations and people against earth leakages and direct or indirect contact, incorporating advanced remote control and automation functions.

In AUTO mode, the device allows for remote supply management, facilitating both voluntary disconnection and reclosing after a nuisance trip (caused, for example, by storms or voltage spikes). Through your smartphone, you can restore power instantly, ensuring the continuity of critical equipment such as security systems, refrigerators, or servers. On the other hand, MANUAL mode disables remote control, operating as a conventional RCCB to ensure maximum safety during maintenance tasks.

WiFi Control and Smart Management

Thanks to its wireless connectivity, this device fully integrates into the Tuya Smart, Google Home, and Alexa ecosystems. This allows not only remote control but also the creation of smart scenes and timers. Details on configuration and setup can be found in the "Manuals and Downloads" section.

Technical Specifications

Number of poles: 2 (Phase + Neutral)

Rated current: 40A

Residual current sensitivity: 30mA (Class AC/A depending on model)

Breaking capacity: 6 kA

Operating voltage: 220–240V AC

Maximum cable section: 25 mm²

Mode selector: Physical (MANUAL / AUTO)

Reclosing module: High-reliability GEYA GRD9L-W

Installation and Protection

With an IP20 protection rating, this equipment is designed for DIN rail mounting inside indoor electrical panels. It offers protection against solid particles (>12 mm) and must be kept in dry environments (not waterproof).

Certification and Warranty

This product is CE Certified, strictly complying with European low voltage and electromagnetic compatibility directives. It offers a 3-year warranty.
