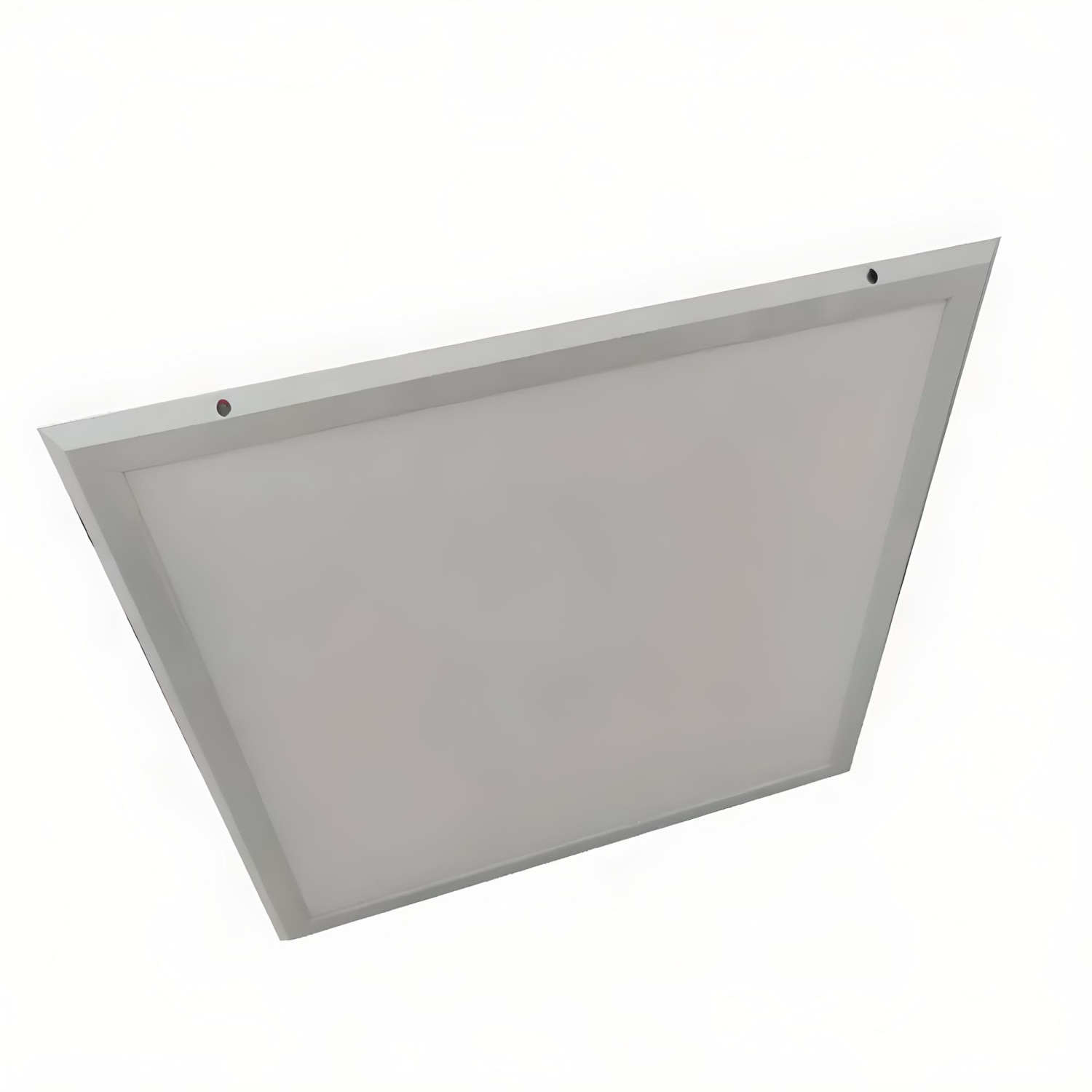

ATEX LED Panel 625 x 625 mm, 48 W, IP66

A high-efficiency, ultra-slim industrial LED panel, specifically designed to ensure safe lighting in potentially explosive atmospheres. Its sealed and robust construction makes it the ideal solution for refineries, distilleries, chemical plants, paint booths and areas where flammable gases or dusts are present in general.

Technical Specifications:

Dimensions: 625 x 625 x 20.5 mm

Power: 40 W

Colour temperature: 6000K (Cool White)

ATEX marking (Gas): II 2G Ex db eb mb IIC T6 Gb

ATEX marking (Dust): II 2 D Ex tb IIIC T80°C Db

Construction: Aluminium housing with IP66 protection rating

Key Features

Certified safety: Explosion protection in environments classified as Zone 1, 2 (gases) and Zone 21, 22 (dust).

Ultra-slim design: Ideal for recessed, pendant or surface-mounted installation.

High energy efficiency: Provides bright, uniform light (6000K) with low power consumption of 48W.

High durability: Corrosion-resistant materials and mechanical components designed for continuous performance in demanding environments.

The panel includes a cable gland and an ATEX enclosure to protect the driver.

It is ATEX-certified and comes with a 5-year warranty.
