Power cable 3x2,5mm² RV-K 0,6/1kV 50m

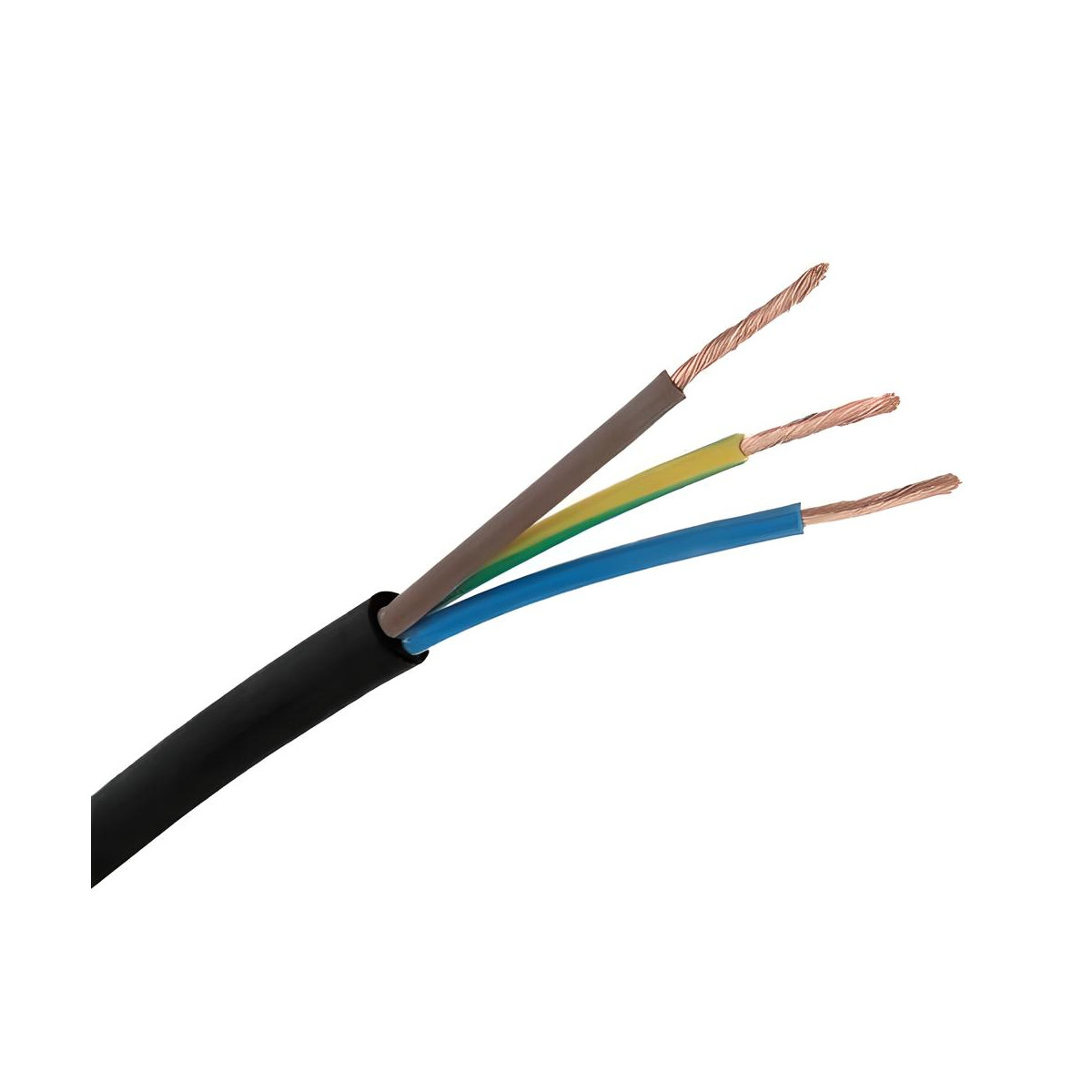

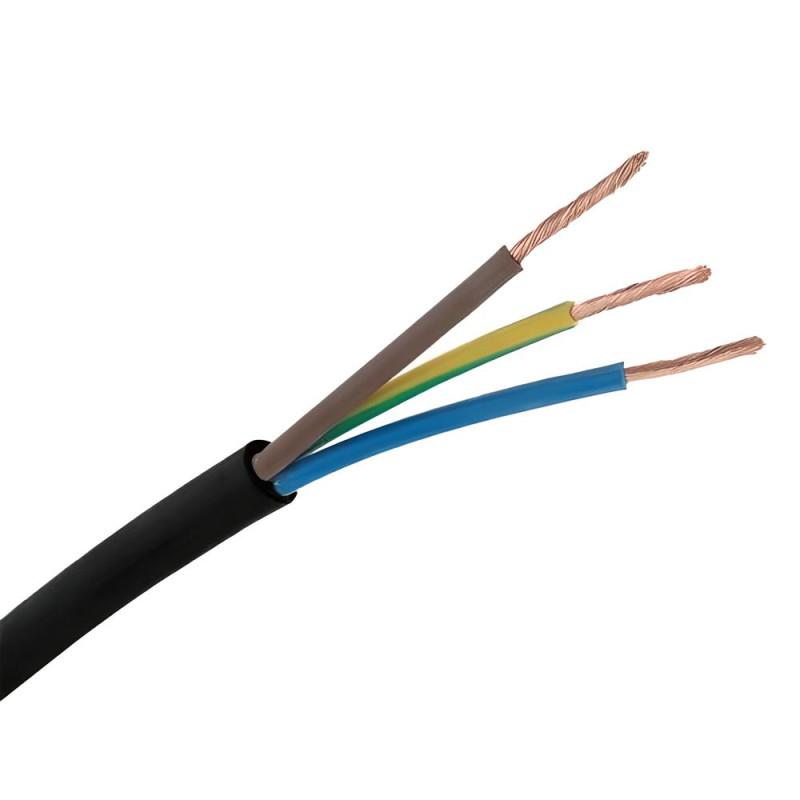

RV-K 0,6/1kV 3G2,5 black colour cable, with 3 wires of 2,5mm² section.

Complies with the classification criteria for construction products according to Regulation CPR 305/2011 and standard EN 50575, being these cables the ones indicated for the transport and distribution of electrical energy at low voltage. Recommended for industrial connections, connections, internal distribution and other fixed installations. They are suitable for indoor and outdoor installations, on air supports, in tubes or buried. Due to their great flexibility, they are very suitable for complex and difficult installations.

This product is supplied in rolls of 50 metres, packed in shrink-wrapped plastic.

Technical characteristics

- Conductor: Flexible electrolytic copper (Class V) according to UNE-EN 60228, EN 60228 and IEC 60228.

- Insulation: Cross-linked polyethylene (XLPE) type DIX 3 according to UNE 21123, HD 603 S1 and IEC 60502-1.

- Sheath: PVC type DMV-18 according to UNE 21123, HD 603 S1 and IEC 60502-1

- Rated voltage: 0.6/1 kV

- Test voltage: 3.500 V A.C.

- Maximum temperature: 90 ºC
