• LED Panel - Extra-slim, 40W, 30 x 120 cm
  • LED Panel - Extra-slim, 40W, 30 x 120 cm

LED Panel - Extra-slim, 40W, 30 x 120 cm Silver Frame

40W
3800 lumen
120
220V
PN30x120P40F
€24.94  TTC
Color
Quantity
Not Available

Extra-slim 40W, 30 x 120 cm, LED ceiling panel.

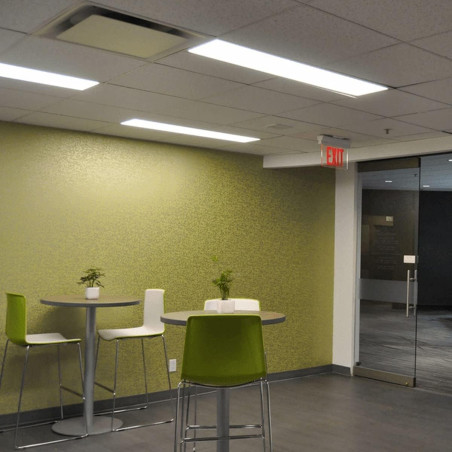

Extra-slim LED panel with 3 mounting options: surface mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

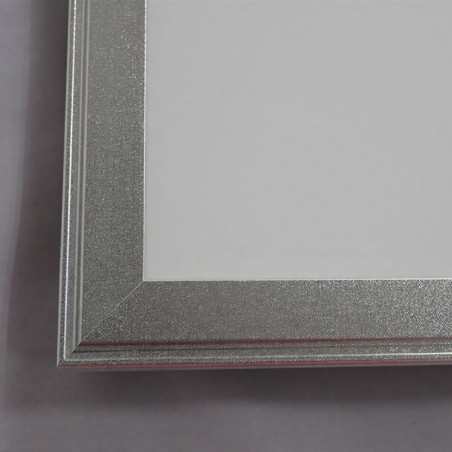

White panel and grey-edge model.
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest - mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) Installation installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.

Delivery within 24-48h. For further information, please check our Delivery Policy.
Satisfaction guaranteed or your money back, please check our Returns Policy.

PN30x120P40F

Data sheet

Size

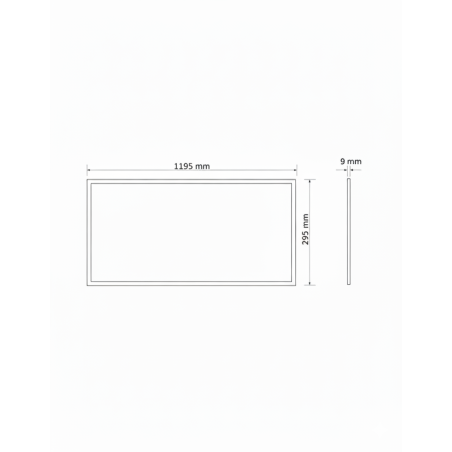

295 x 1195 x 9 mm
Cut
275 x 1175 mm
Power
40W
Lumen
3800
Color temperature
Cool white 6000K - Natural white 4500K
Beam angle
120
Led type and quantity
SMD 4014 160 leds
VIN
220V
Frequency (HZ)
50/60 hz
Material
aluminum and polycarbonate
IP grade
IP20
Duration
30,000 hours
Working temperature
-20º / +40º
Certifications
CE, RoHS
Warranty
3 years
